AC Hose Crimping Machine High Pressure Hydraulic Crimper Machine

Name: AC Hose Crimping Machine High Pressure Hydraulic Crimper Machine
Brand: MENSION
Price: 1 USD

AC Hose Crimping Machine High Pressure Hydraulic Crimper Machine Manufactures

Brand Name : MENSION

Model Number : MS-E38

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Crimping Force : 640T

Max. Opening : 31mm

Color : Blue

Product Name : E38 AC Hose Crimping Machine

Application : Workshop

Power : 4KW

Size : 630*450*600mm

Weight : 200Kg

Hydraulic Oil : T46

Contact Now

HYDRAULIC 2 INCH AC HOSE CRIMPING MACHINE MS-E38

DESCRIPTION

MS-E38 AC hose crimper machine is updated model based on P32. It is famous for its low cost and big crimping ability. With standard die sets, it can crimp hydraulic high pressure hose from 1/4 to 2 inch, industrial hose up to 3 inch.

MAIN FEATURES

1. Big crimping force with double bevel crimping structure;

2. Human design panel, easy to learn;

3. Die sets choosing reference table, convenient for new user;

4. Germany quality hydraulic system, long service life

TECHNICAL DATA

Model	MS-E38 AC Hose Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	640 (T)
Hose Size	1/4 - 2 (inch) 4SH
Max. Opening	31 (mm)
Die Sets	10
Die Set Type	38
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	4 (KW)
Length	630 (mm)
Width	450 (mm)
Height	600 (mm)
Weight	200 (KG)
Hydraulic Oil	50 (L)

AC Hose Crimping Machine High Pressure Hydraulic Crimper Machine

38 CRIMPER MACHINE DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8 mm	35
8*	8 - 10 mm	35
10*	10 - 12 mm	35
12*	12 - 14 mm	35
14	14 - 16 mm	60
16	16 - 20 mm	60
20	20 - 22 mm	60
22	22 - 26 mm	60
26	26 - 30 mm	70
30	30 - 38 mm	70
38	38 - 46 mm	70
46	46 - 54 mm	80
54	54 - 64 mm	80
64	64 - 69 mm	80
69*	69 - 76 mm	100

NOTE

1) Customized die sets are available with different size or shape;

2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;

3) Foot pedal is available to make the hands free;

4) * for non standard die sets.

AC Hose Crimping Machine High Pressure Hydraulic Crimper Machine

Product Tags:

Complementary Control AC Hose Crimping Machine

E38 AC Hose Crimping Machine

High Pressure ac pipe crimping machine

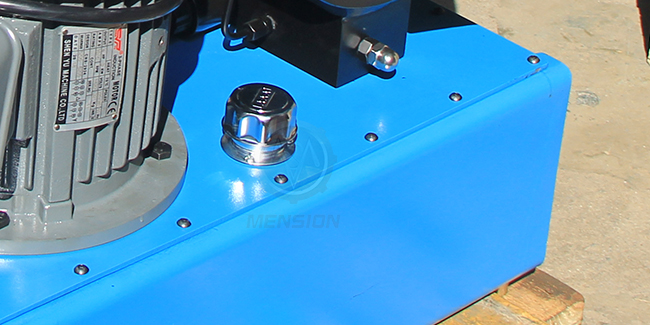

AC Hose Crimping Machine High Pressure Hydraulic Crimper Machine Images
